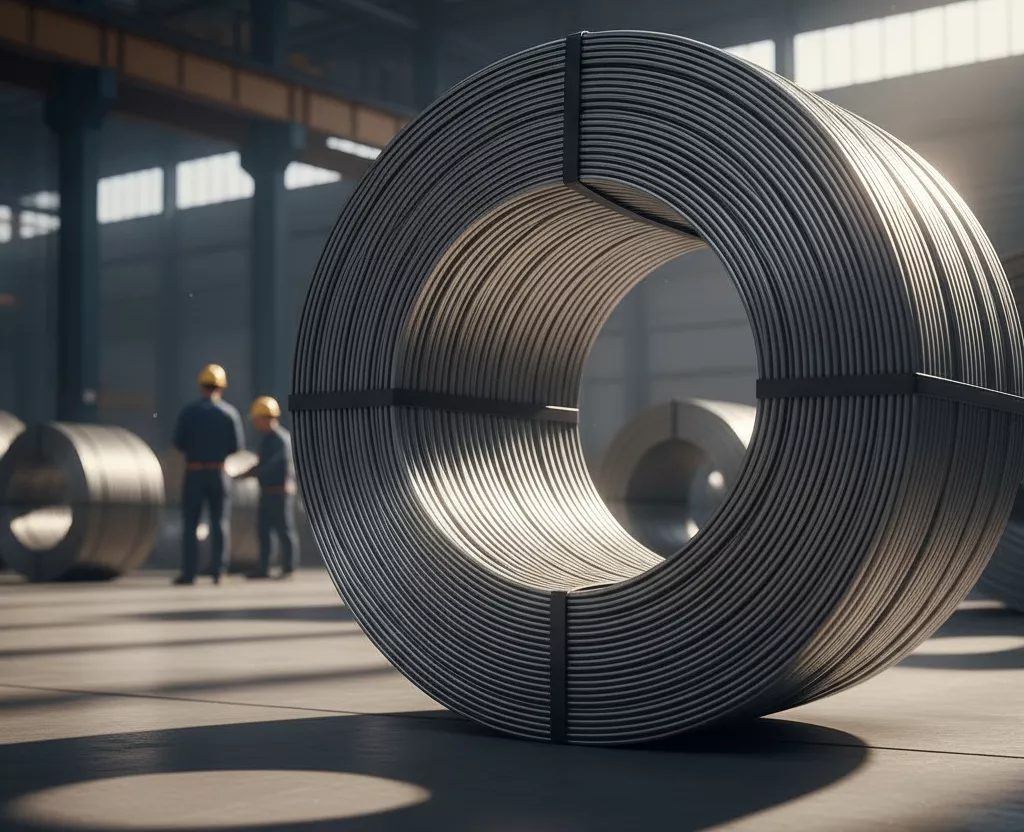

Aluminium Wire Rods

Why Choose Us?

Our premium wire rods, available in high-purity EC grade and 6XXX silicon-magnesium alloy, serve as the foundation for world-class conductors, cables, and transformer windings. Precision-drawn and rigorously tested, they deliver the conductivity, strength, and consistency your projects demand.

High Electrical Conductivity

 EC grade rods guarantee a minimum 61% IACS for efficient power transfer.

Uniform Mechanical Properties & Purity

 Continuous casting and controlled rolling ensure smooth, defect-free rods free from laps, kinks, or seams.

Heat-Treatable Strength

 6XXX series (e.g., 6101, 6201) alloy rods combine medium strength with excellent conductivity and corrosion resistance.

Dimensional Precision

 Diameters from 9.5 mm to 28.6 mm maintained within ±0.5 mm for seamless downstream drawing and extrusion.

Corrosion Resistance

All-aluminium exterior resists moisture, pollutants, and UV exposure.

Extended Service Life

 Alloy compositions optimized to withstand harsh environments, coastal, industrial, and high-temperature settings.

Applications

  • Base material for AAC, ACSR, AAAC, ACAR, and ACSS conductors

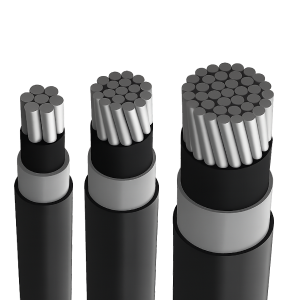

  • Insulated LV/MV cables and aerial bundled cables (ABC)
  • Transformer windings and power distribution coils
  • Welding wires, robotics cabling, and specialty industrial wiring
  • Custom alloy rods for high-performance and niche applications

Applicable Standards

  • IS 5487:1997 – Aluminium wire rod specifications
  • IS 8130 – Aluminium conductor wire and stranded wire
  • ASTM B233 – Aluminium wire rod for electrical applications
  • EN 755-2 – Aluminium and aluminium-alloy rods
  • IEC 61089 – Overhead electrical conductors

Technical Specifications

Grade Alloy Diameter Range (mm) Conductivity (% IACS) Tensile Strength (MPa) Typical Uses
EC Grade 1000 9.5 – 25.0 ± 0.5 ≥ 61 70–95 AAC, ACSR, AAAC, Cables, Transformers
6101 (T4/T6) 6XXX 9.5 – 28.6 ± 0.5 ≥ 56 120–150 Alloy conductors, ABC Cables
6201 (T6) 6XXX 9.5 – 28.6 ± 0.5 ≥ 56 150–180 High-strength conductors
