Aluminium Conductor Steel Reinforced (ACSR)

Why Choose Us?

Combining the high conductivity of aluminium with the tensile strength of a galvanized steel core, our ACSR conductors deliver low-sag performance and mechanical resilience, ideal for everything from local distribution to long-span transmission lines.

Optimal Strength-to-Weight

Aluminium strands helically stranded around a steel core ensure superior mechanical support with minimal weight penalty.

High Conductivity

 Pure aluminium outer layers provide excellent electrical performance and low DC resistance.

Low Sag & Creep Resistance

 Steel reinforcement and controlled alloy composition minimize elongation under load.

Durable & Weather-Resistant

 Galvanized steel core resists corrosion; aluminium sheath endures UV, moisture, and industrial pollutants.

Wide Temperature Range

Maintains performance from +90 °C, with short-circuit tolerance above 150 °C.

Versatile Sizes

 Available from small-scale “Weasel” conductors to heavy-duty “Dog”— custom lengths on request.

Applications

  • Overhead distribution in urban and rural grids
  • Long-span crossings (rivers, valleys) where tower loading is critical

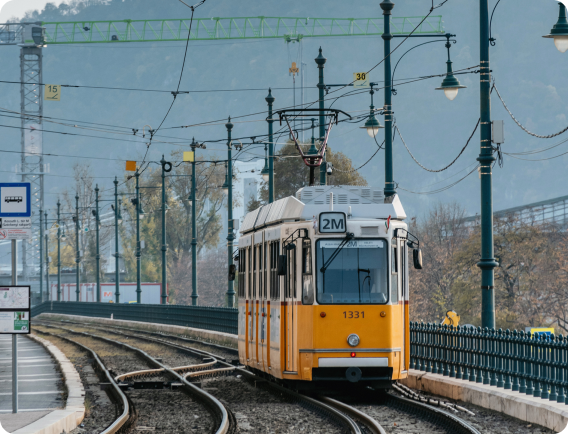

  • Railway electrification and tramway feeders
  • Industrial power feeds and campus networks
  • Retrofit projects upgrading existing lines for higher loads

Applicable Standards

  • IS 398 Part 2 – ACSR with galvanized steel core for overhead lines
  • IEC 61089 – Round-wire, concentric-lay overhead electrical conductors
  • ASTM B232 – Specification for ACSR galvanized steel core
  • BS EN 50183 – ACSR with galvanized steel core for overhead lines

Technical Specifications

Conductor Code Stranding (Al/Steel) Ø Approx. (in) DC Resistance (Ω/1000 ft) Min. Tensile Strength (lbs)
Weasel 6 × 0.066″ Al + 1 × 0.066″ GI core 0.198″ 0.6555 11,900
Rabbit 6 × 0.083″ Al + 1 × 0.083″ GI core 0.250″ 0.4116 26,285
Dog 26 × 0.107″ Al + 7 × 0.083″ GI core 0.680″ 0.0578 10,900
Panther 76 × 0.1819″ Al + 19 × 0.0849″ GI core 1.880″ 0.0069 61,700
Full ACSR range spans 30 kcmil to 3,000 kcmil with numerous intermediate sizes and custom stranding configurations available
