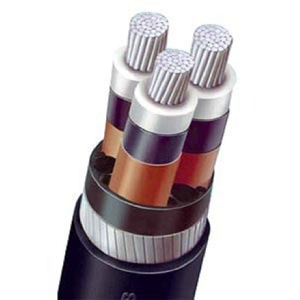

HT XLPE Power Cables

Why Choose Us?

Engineered for medium-voltage distribution, our XLPE-insulated, armoured HT cables deliver outstanding electrical performance and mechanical protection for voltages up to 33 kV. With precision extrusion, robust screening, and fire-safe outer sheaths, these cables ensure reliable power delivery in the most demanding underground and industrial environments.
High Dielectric Strength

High Dielectric Strength

 XLPE insulation with conductor and insulation screens provides high voltage strength, minimal losses, and long-term reliability.
Low Dielectric Losses

Low Dielectric Losses

Optimized insulation geometry minimizes energy dissipation and operational costs.
Mechanical Protection

Mechanical Protection

GI and aluminium wire armour shields against crushing, ground movement, and mechanical stress during installation.
Thermal Stability

Thermal Stability

 Rated for continuous operation from –15 °C to
+90 °C and short-circuit tolerance up to 250 °C.
Chemical UV Resistance

Chemical & UV Resistance

Outer Sheath options in FRLSH PVC or UV-stable PE ensure outdoor durability.
Partial Discharge Tested

Partial-Discharge Tested

Factory-tested at 1.9/3.3 kV to 19/33 kV to guarantee insulation integrity.

Applications

  • Primary and secondary power feeds in utilities and substations
  • Underground distribution in urban and industrial complexes
  • Power evacuation from solar farms, wind parks, and other renewable sources
  • Direct burial, duct, and trench installations
  • Heavy-duty circuits in mining, chemical, and process industries
ht ap

Applicable Standards

  • IS 7098 Part 2 – XLPE-insulated, screened cables up to 33 kV (primary reference).
  • IS 8130 – Aluminium and copper conductor specifications.
  • IEC 60502-2 – For cables 6 to 30kV. (optional).
  • IEC 60332 – Flame-propagation testing (preferred over IEEE 383 in India).
Prem Cables ht standards certification

Technical Specifications

Parameter Specification / Notes
Conductor Aluminium or Copper (stranded/compacted, circular or sector)
Conductor Screen Extruded semiconducting compound
Insulation XLPE as per IS 7098 (Part 2)
Insulation Screen Extruded semiconducting compound
Metallic Screen Copper tape (as required)
Inner Sheath PVC or PE with non-hygroscopic filler
Armour GI strip/wire or Aluminium wire (for single-core)
Outer Sheath PVC-ST2 / FR, FRLSH, PE and UV-stable options
Voltage Rating Up to 33 kV AC
Test Voltage 24 kV (for 11 kV cables) / 39 kV (for 33 kV cables), 5 min duration
Operating Temp. –15 °C to +90 °C (continuous)
Short-Circuit Temp. Up to 250 °C
Min. Bending Radius 15 × overall cable diameter (IS may allow 12D in special cases)
Available Sizes & Ratings
Available in standard ranges; ratings depend on installation conditions

Related products

ab cple

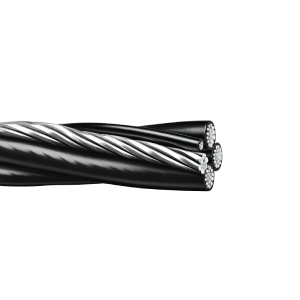

AB  Cables

Know More
ht cble

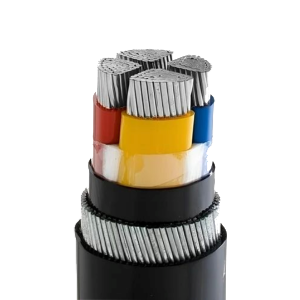

LT  XLPE Cables

Know More
Prem Cables medium voltage covered conductor

PVC LT Cables

Know More
ht applicable

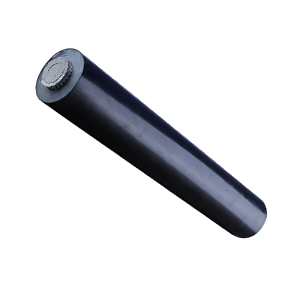

MVCC  Cables
