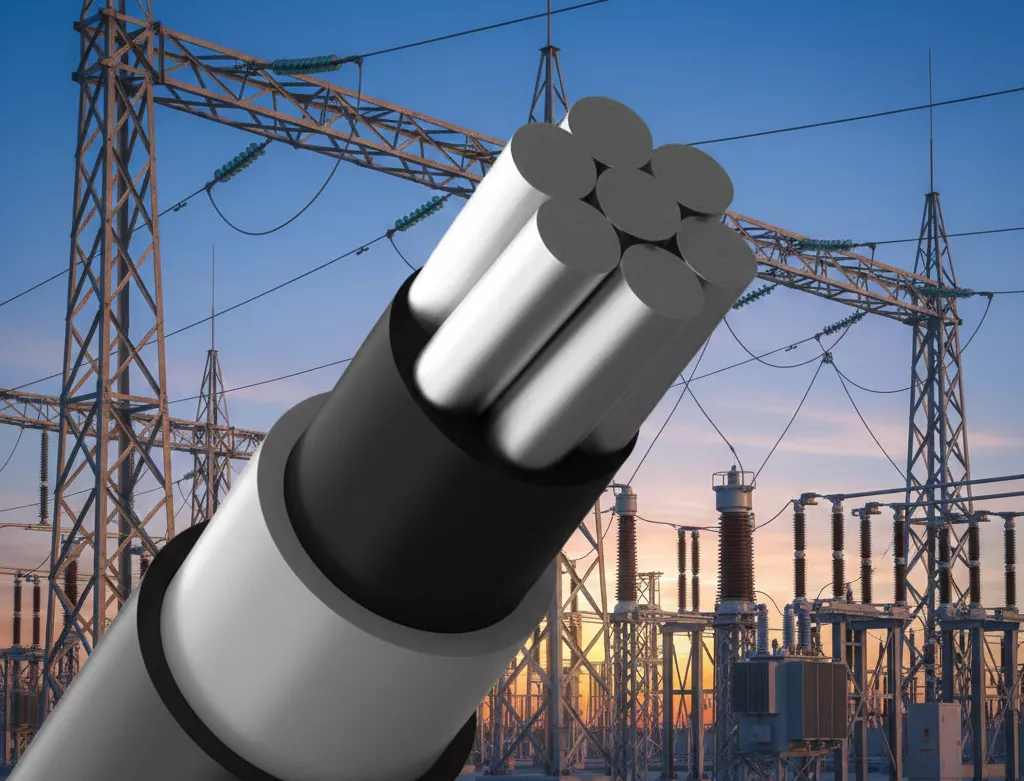

Medium Voltage Covered Cable

Why Choose Us?

The cable delivers high thermal stability for medium-voltage overhead use, with strong mechanical protection and low dielectric losses from MV-grade XLPE insulation. Its UV- and tracking-resistant outer layer ensures excellent performance in harsh, coastal, or forest environments, while offering flexible installation and reduced fault risk.

High Thermal & Electrical Stability

MVCC conductors use medium-voltage grade XLPE covering, providing excellent thermal endurance, dielectric performance, and improved current-carrying capacity. They operate reliably under high ambient temperatures and heavy loading conditions.

Enhanced Reliability for MV Overhead Networks

The covered construction significantly reduces line faults caused by branches, tree contact, moisture, and wildlife, making MVCC ideal for forest, coastal, and storm-prone regions.

UV-Resistant & Weatherproof Covering

The outer layer is UV-, moisture-, and tracking-resistant, ensuring long service life in harsh outdoor climates such as coastal humidity, desert heat, and high-pollution areas.

Compliance With MV Standards

Manufactured as per relevant industry standards and utility specifications for 11 kV / 22 kV / 33 kV MV networks, ensuring safety, mechanical strength, and long-term reliability.

Superior Mechanical Strength

The conductor provides high tensile strength for long overhead spans, reduced sag, and consistent performance even under windy or stormy conditions.
Reduced Outages & Improved Safety

Reduced Outages & Improved Safety

MVCC drastically reduces outages and enhances safety by minimizing phase-to-phase contact events, preventing animal-induced faults from birds, monkeys, and snakes, cutting down vegetation-related flashovers, and significantly lowering accidental contact risks.

Applications

  • Medium‑voltage overhead distribution networks.
  • Forested or high‑risk areas where covered conductors reduce outages.
  • Urban and rural MV feeders requiring improved safety.

Applicable Standards

  • IS 398 Part-II – An Indian standard that applies to covered conductors.
  • IS 398 Part-IV – Another relevant Indian standard for conductors.
  • IEC 61089 – A standard for the design and construction of overhead conductors.
  • BS EN 50182 – A standard specifying the requirements for covered conductors.
  • EN 50397-1 – Specifically covers the technical requirements for the conductor, including non-compacted conductors, and is often referenced in technical specifications.

Technical Specifications

Parameter Specification
Conductor AAAC / ACSR / AL7 / AL59
Water Blocking Layer Extruded longitudinal water-blocking layer
Insulation MV and HT-grade XLPE
Outer Covering UV-resistant, tracking-resistant XLPE and HDPE
Voltage Rating 6.6 kV to 33 kV
Max Temperature Short-circuit: 250°C
Bending Radius As per standard
Available Sizes & Ratings
- Conductor sizes: 31.60 sq.mm to 241 sq.mm
- Available in single & multi‑strand constructions
