AL59 Conductors

Why Choose Us?

Designed for modern overhead distribution and transmission networks, AL59 conductors use a high-conductivity aluminum alloy (59% IACS) to deliver superior efficiency, low losses, and excellent mechanical performance for new lines and network upgrades.

High-Conductivity Alloy

Manufactured from a special Al‑Mg‑Si alloy with 59% IACS conductivity, AL59 conductors reduce line losses and improve system efficiency.

Lightweight, High Strength Design

Higher strength‑to‑weight ratio enables longer spans, reduced tower loads, and easier installation.

Excellent Thermal Performance

Enhanced thermal stability allows higher operating temperatures and improved ampacity without excessive sag.

Superior Corrosion Resistance

Ideal for coastal, industrial, and polluted regions, ensuring long‑term durability.

Reduced Line Losses

High conductivity lowers resistance and reduces I²R losses for improved efficiency.

Extended Service Life

High fatigue strength, low creep, and excellent resistance to ageing ensure long, maintenance‑free service life.

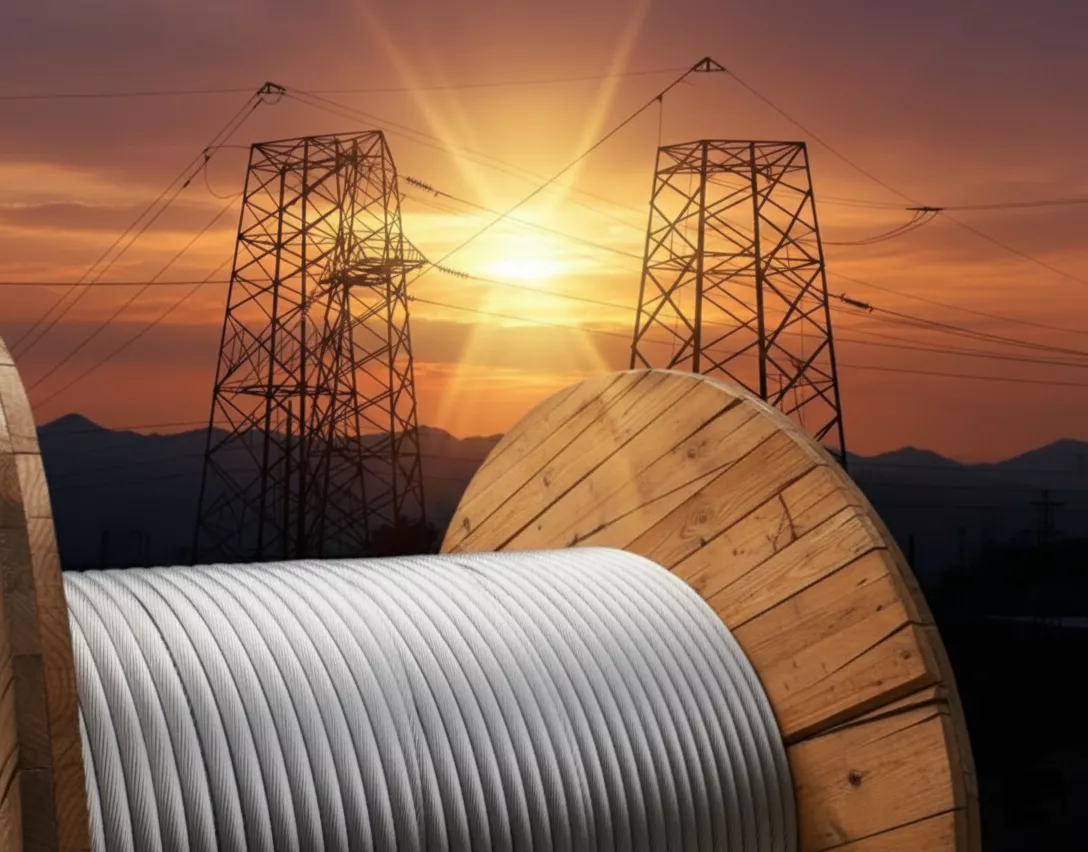

Applications

Medium and high‑voltage overhead distribution lines
Long‑span rural and semi‑urban networks
Coastal and industrial regions with corrosive atmospheres
New network expansions requiring lightweight, efficient conductors
Upgrading existing AAAC/ACSR lines for higher capacity
Renewable energy evacuation from wind and solar plants

Technical Specifications

Sl. No.	Actual Area (mm²)	Stranding and Wire Diameter (mm)	Approx Overall Dia (mm)	Approx Mass (kg/km)	Calculated Maximum Resistance at 20°C (Ω/km)	Approx. Calculated UTS (kN)
1	15	3/2.50	5.39	40.15	1.9920	3.20
2	24	7/2.00	6.00	60.15	1.3379	5.80
3	32	7/2.50	7.50	80.05	0.8635	8.20
4	50	7/3.05	9.15	125.02	0.5537	12.30
5	80	7/3.81	11.43	212.88	0.3687	18.20
6	100	19/2.50	12.88	278.22	0.2949	21.90
7	125	19/2.89	14.45	342.55	0.2372	29.60
8	175	19/3.66	18.30	549.90	0.149	45.60
9	206	37/2.50	15.39	509.29	0.1479	55.47
10	232	37/2.65	16.28	573.29	0.1311	66.08
11	454	61/3.08	27.72	1434.34	0.0653	108.1
12	470	91/2.50	25.00	1223.00	0.0631	111.7
13	524	61/3.25	24.38	1538.61	0.0566	124.73
14	594	61/3.50	31.20	1638.23	0.0504	136.4
15	642	61/3.66	31.70	1711.16	0.0469	145.5
16	695	61/3.81	34.29	1919.30	0.0427	158.60
17	774	61/4.02	36.18	2136.69	0.0384	169.17
